MACHINES

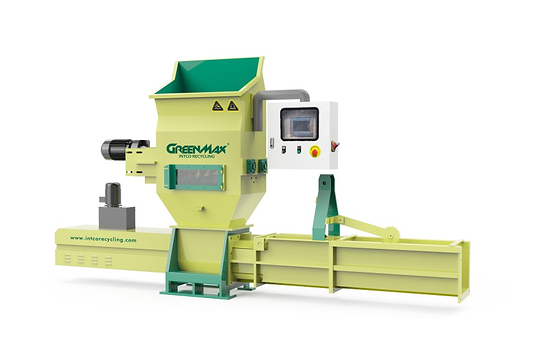

APOLO Series
- for Polystyrene Foam Compression



Apolo Series are eps recycling machines, in united states also called styrofoam recycling machine. A series could accept all kind of polystyrene foam as followings:



APPLICABLE MATEIAL

EPS / Expanded Polystyrene (STYROPOR)
EPS expanded polystyrene foam

XPS / Extruded Polystyrene (STYROFOAM)
XPS extruded polystyrene foam

PSP / Polystyrene Paper: Food tray and Cups
PSP polystyrene paper food tray cups


FEATURES
Features Apolo series

1. SIEMENS control system makes machine operation much easier

and simpler.

2. High-quality components made by reputable manufacturers SIEMENS,

PHOENIX, SCHNEIDER, etc.

3. Screw Compression Technology enables continuous output at a ratio

of 50:1, high density, high security and low utility consumption.

4. The Infrared Sensor and Safety Switch ensure the security and

efficiency for automatic operation.

5. An efficient pre-crusher shreds the foam into 20-50 mm size small pieces.

6. CE approved. UL/CSA standards.


A-SILO SYSTEM

Throughput: 300kg/h
Compacted Ratio: 50:1
Density: 200-400kg/m3

A-C200

Throughput:200kg/h
Compacted Ratio:50:1
Density: 200-400kg/m3
Total Power: 19.55kw

A-C100

Throughput: 100kg/h
Compacted Ratio: 50:1
Density: 200-400kg/m3
Total Power: 10.25kw

A-SWD System

Throughput: 300kg/h
Compacted Ratio: 50:1
Density: 200-400kg/m3
