MACHINES

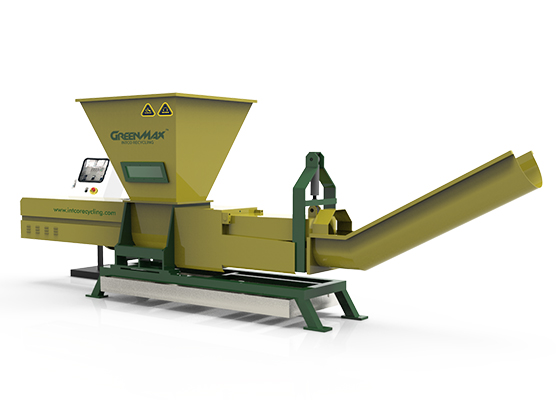

Poseidon Series
-for Packagings Dewatering Compactor

APPLICABLE MATEIAL

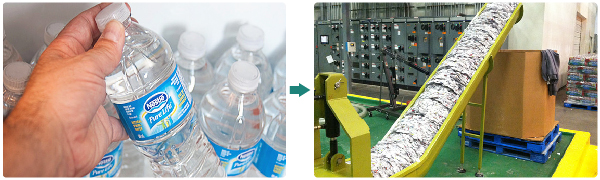

PET Bottles
PET Bottles

Aluminium Cans
Aluminium cans

TETRA-PAK & Yogurt Cups
Tetra-pak and Yogurt Cups

FEATURES
Features Poseidon series

1. SIEMENS control system makes machine operation much easier

and simpler.

2. High-quality components made by reputable manufacturers SIEMENS,

PHOENIX, SCHNEIDER, etc.

3. Screw Compression Technology enables continuous output at a ratio

of 8:1, high density, high security and low utility consumption.

4. Water draining function squeezes out any liquid in the bottles to

the water collection tray under the machine.

5. Water collection tray is made of acid-resistant stainless steel to

withstand the low PH in many liquids.

6. CE approved. UL/CSA standards.


P-C200

Throughput: 200kg/h
Screw Reduction Ratio: 50:1
Bottle Volume Reduction: 8:1
Density: 250kg/m3
Total Power: 8.05kw

P-C350

Throughput 350kg/h
Screw Reduction Ratio: 50:1
Bottle Volume Reduction: 8:1
Compressed PET Density: 250kg/m3
Total Power: 15.55kw

P-C900

Throughput 900kg/h
Screw Reduction Ratio: 50:1
Bottle Volume Reduction: 8:1
Compressed PET Density: 900kg/m3
Total Power: 22.55kw
